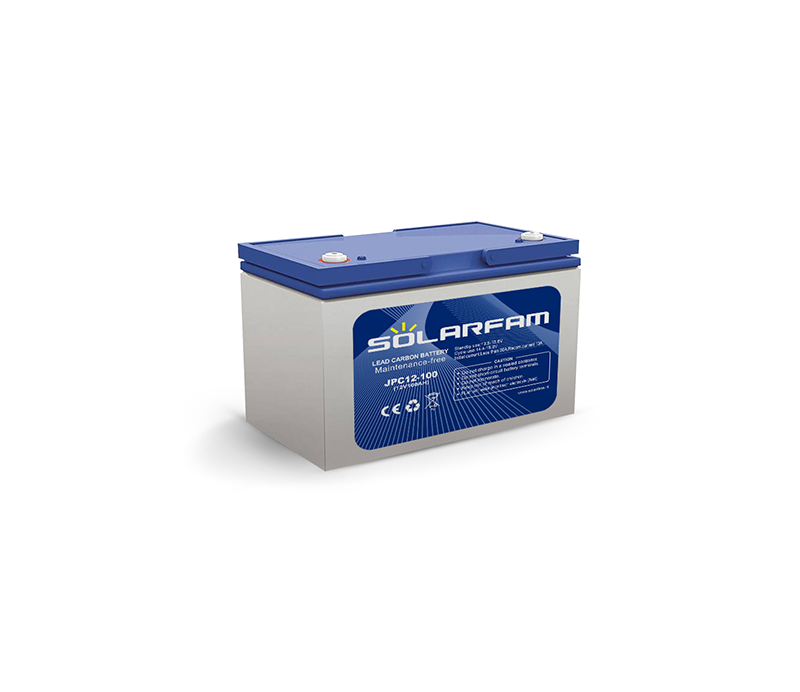

12V 100AH Lead-Carbon BATTERY
Dimensions : 330x171x219mm
Weight : 32.5 kg
Nominal Capacity: 100Ah
Nominal Voltage: 12V
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Applications
UPS/EPS
Power systems
Telecommunications system
Emergency lighting、Auto control system
Solar/wind generating storage cyclic
Other general purpose
General Features
High corrosion resistant performance: Pb-Ca multi-alloy grid
High energy density and power density
Optimized capability of instant high-current discharging
Excellent charge acceptance ability
Excellent deep cycle discharge capability
Strong high and low temperature performance
Precision sealing technology
Long life
| Model | JDG12-200 |
| Battery Type | GEL |
| Nominal Voltage | 12V |
| Nominal Capacity | 200Ah |
| Design life | 12 years |
| Terminal | M8 |
| Approx. Weight | Approx 59.5kg (131.2lbs) |
| Container Material | ABS |
| Rated Capacity | 200Ah 10Hour Rate (20.0A to 10.8V) |
| 158Ah 3Hour Rate (52.6A to 10.8V) | |
| 128Ah 1Hour Rate (128A to 10.5V) | |
| Internal resistance | Full charged at 25˚C: 3.2 mΩ |
| Max. Discharge Current | 2400A(5S) |
| Operating Temperature | Discharge: -40 ~60℃(-40~ 140˚F) |
| Charge : -20 ~50℃(-4~ 122˚F) | |
| Storage: -20 ~50℃(-4~ 122˚F) | |
| Charge Method (25 ˚C) | Charge current: Max.50A；Recom.20A |
| Float Charge voltage(-3mV/℃）:
13.5-13.8V,recom.13.5V(Full floating system) 13.5-13.8V,recom.13.62V(Cycle use system) |
|
| Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C) | |
| Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C) | |
| Self discharge | 3% of capacity declined per month at 25˚C |
